JSF ENGINE MOUNTS

CNC MACHINING & ASSEMBLY OF TITANIUM AND STAINLESS STEEL ENGINE MOUNTS

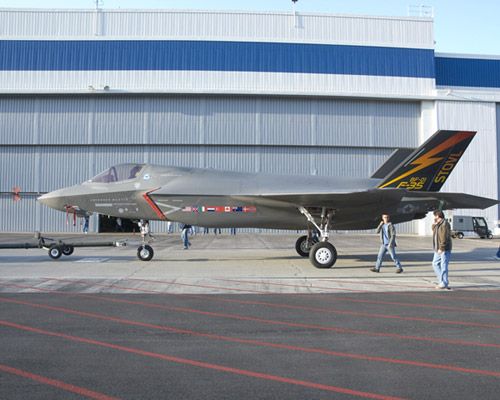

When Lockheed Martin procurement and manufacturing fell out of sync they turned to Lx3 Corporation to meet critical deadline.  With BF-1 roll out to Marine Corps just weeks away, Lx3 was given task to expedite manufacture of required components.  These components included Aft Thrust Mount Clamp assemblies, Aft Side Link Assembly and Fwd Side Link Assembly.  These assemblies were required to install engine into the very first STOVL (Short Takeoff Vertical Landing) F-35 to be manufactured.

Materials used were 6Al-4V Titanium and 13-8 MO PH Stainless steels with all inspections and coatings applied to flight critical specifications. Lx3 performed all machining and assembly operations in house and coordinated outsourcing of all additional required processes.
Completing all assemblies on schedule and fulfilling all specified LMA, AMS, and AS standards as indicated in our customer supplied drawings, LX3 exceeded our client's high expectations for service and quality. We even received the "Outstanding Manufacturing Support for JSF Program" award for a job well-done!

CNC Machining & Assembly of Engine
Mounts Project Highlights

Product Description Engine Mount Assemblies for BF-1 F-35 STOVL (Short Takeoff Vertical Landing) Application
Capabilities Applied/Processes
CNC milling
CNC Turning
Thread Rolling Per AS8879
Beta Annealing

  • 4Al-6V Titanium Beta Annealed Per AMS-H-81200A & LMA-M5004B. 3
  • Included Micro, Tensile and Fracture Testing of Material

Heat Treatment

  • 13-8 MO Stainless Steel Heat Treated to H1000 Per AMS 5629D
  • Included Tensile Testing of Material

Coating

  • 6Al-4V Ti - Penetrant Inspect, Conversion Coating and Solid Film Lube
  • 13-8 MO CRES - Solid Film Lube and Coatings as Indicated
 Assembly

  • Nitronic 60 bushings installed in CRES Links and Swing Bolts Per LMA-PB033
  • Bushing ID's Machined to Required Tolerance.
  • CRES Pins Installed in Clamp Assemblies Per LMA-PB033 Shrink Fit Method
  • Pins Swaged Per LMA-PB023.

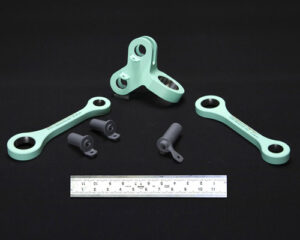

  • Spherical Bearings Installed and Swaged in FWD Side Link Assy.

100% Inspection
Tightest Tolerances +/- 0.0002
Material Used 6Al-4V Titanium

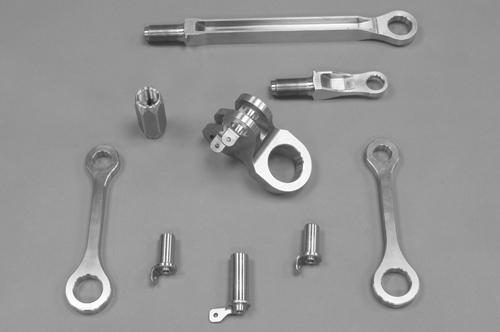

13-8 MO PH Stainless Steel
Components

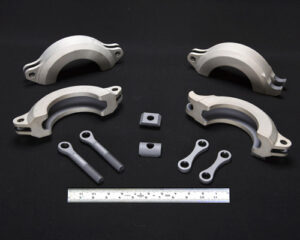

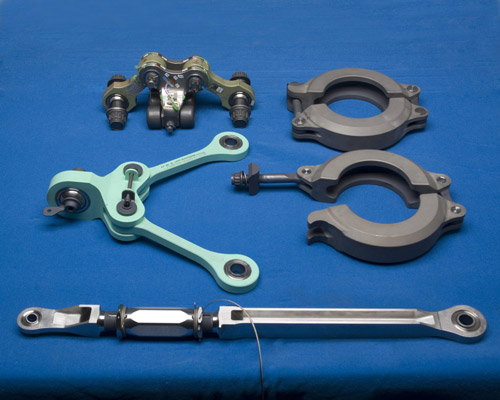

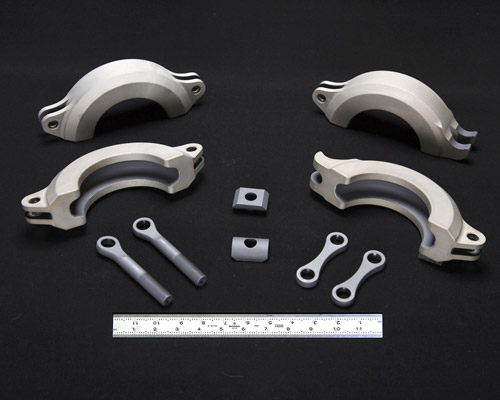

Aft Thrust Mount Clamp Assemblies

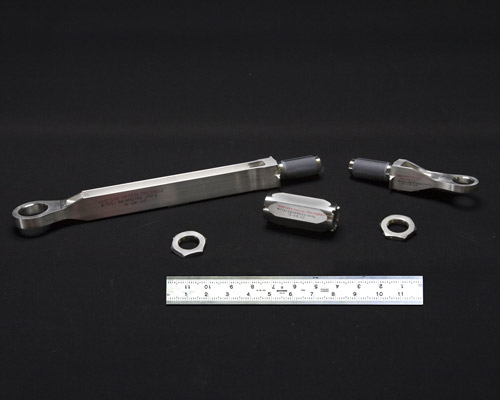

Aft Side Link Assembly		 Forward Side Link Assembly
In process testing performed
Dimensional Inspection
CMM probing		 Precision Measuring Instruments
Turn Around Time 4 week expedited service
Industry for Use Military
Delivery Location Lockheed Martin Aeronautics - Fort Worth, Texas
Standards Met Customer supplied print, 2D Auto CAD Drawing
All Specified LMA, AMS and AS Standards as Indicated in Customer Supplied Drawings
Product Name F-35 Engine Mounts
